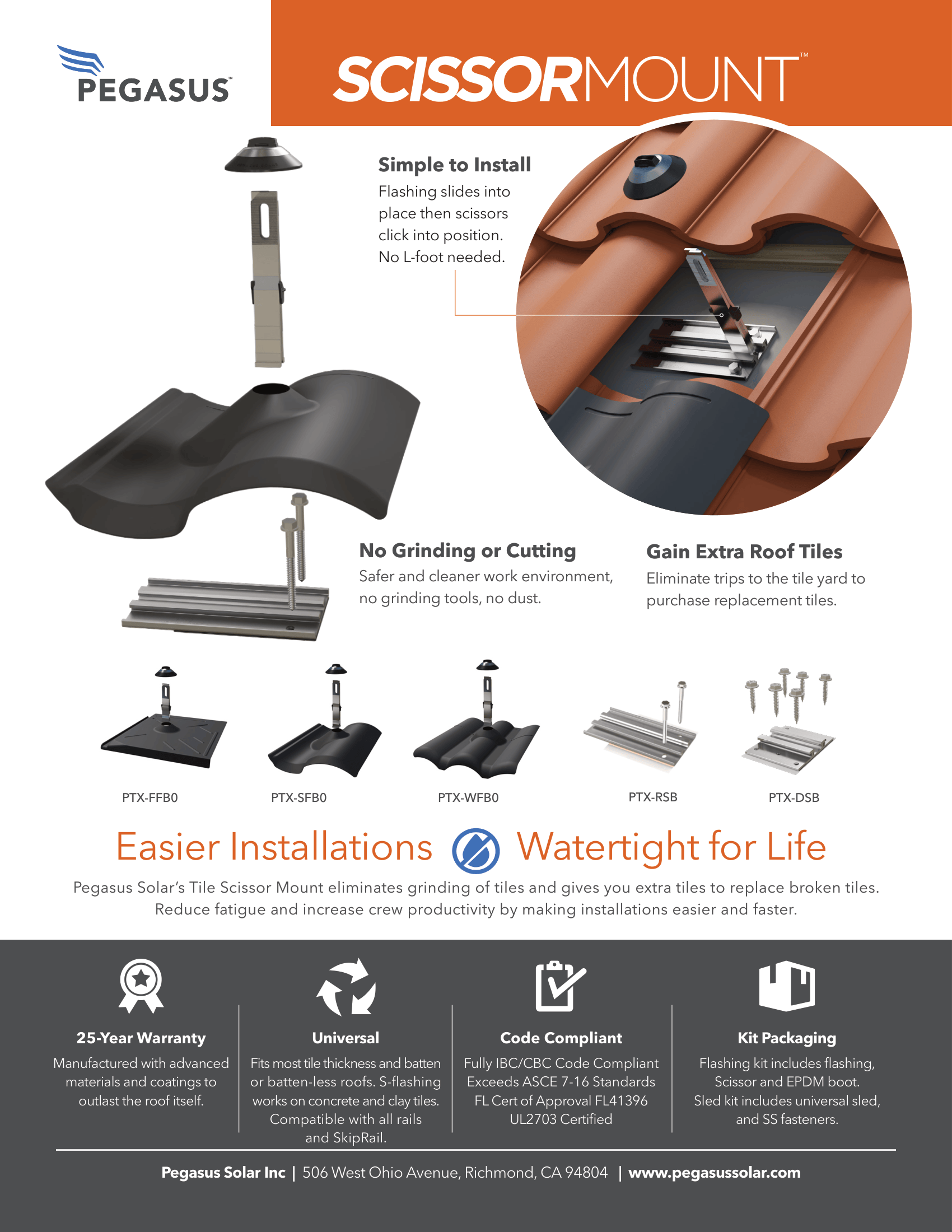

Next-level tile mounting with revolutionary squeeze-lock power
Get ready
For a better day on the job
Cut time, not tile
Replacement flashing for S, W and flat tiles
Revolutionary
Squeeze-lock power
It just clicks!
You have to squeeze it to believe it
Speed installation
Eliminate the L-foot
Connect rail
With a single tightening step
Watertight for life
Elevated, double-seal EPDM boot.
Single-form flashing.
Lip blocks wind-driven rain.
Off-set cone for drainage.
Fast, easy, durable
Tile Scissor Mount comes with a 25-year warranty
Better at every step
Try the Tile Scissor Mount for yourself
Technical Specifications
Flashing Construction
One-piece formed metal in Flat, S, W shapes
Tile Compatibility
Fits most Flat, S, and W-shaped roof tiles
Batten / Batten-less Adjustment
Fully adjustable without additional hardware
Mounting System Compatibility
Rails
Waterproofing
1″ raised cone with metalized EPDM boot
East / West Adjustment
+/- 7″, 14″ total
North / South Adjustment
+/- 1/2″ after lags installed
Scissor Bracket Installation
After flashing installation, simple squeeze lock
Flashing Finish
Standard dark bronze paint (AAMA2605)
Mounting Scissor Bracket Construction
Aluminum scissor bracket with slot
Structural Attachment
(2x) 5/16″ x 3-1/2″ SS lag screws
Certifications and Testing
ASCE 7-16 and TAS100(a)
Warranty 25 years
